Nozzle finder

Two-medium nozzle
Full cone (flat spray)

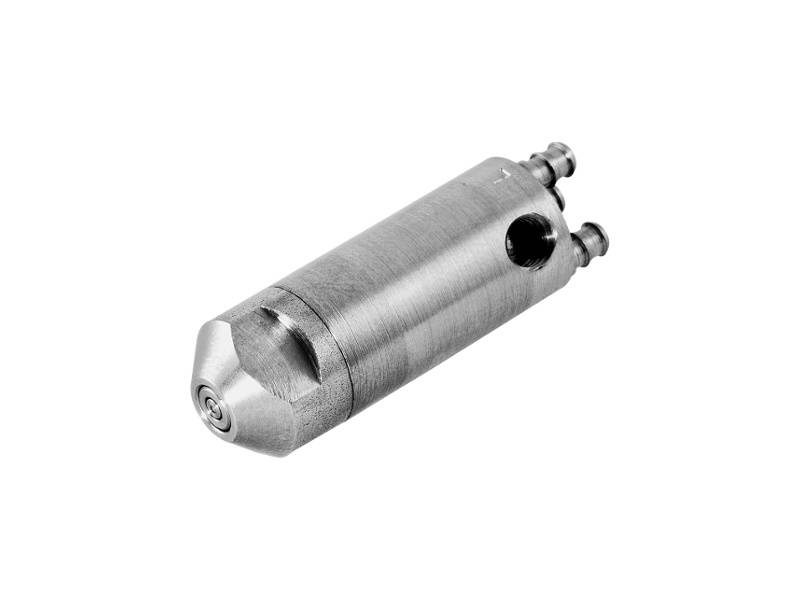

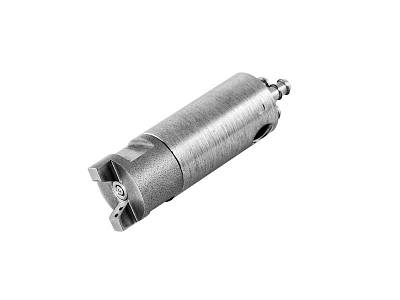

ZD

These nozzles are especially used for very low throughput rates (ml/h) as well as for media of higher viscosity. Normally, the medium to be atomized is dosed. The versions are available with or without a closing pin. The dimensions allow the assembly even where space is limited. Nozzles with closing pin are primarily used for very short operating and spray cycles as the medium supply is interrupted within a short time. In this way, dripping can be minimized.

In each case, the throughput rate is determined by the pressure of the atomized air and the medium. Depending on the medium, the nozzle pressure for the medium amounts to 1.0 to 5.0 bar, for the compressed air 0.5 to 4.5 bar.



Download PDF

Two medium nozzle ZD
